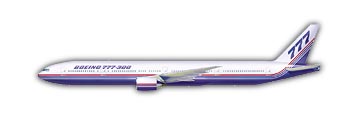

The 777-300 Technical Specifications.
All material on this page is © The Boeing Company

Product profile
777-300 Technical Characteristics
Passengers
Typical 3-class configuration
Typical 2-class configuration
Typical 1-class configuration
386
479
up to 550
Cargo total lower hold volume of 7,552 cu ft (213.8 cu m)
Eight 96-in x 125-in pallets in forward lower hold, 20 LD-3 containers in aft lower hold, and 600 cu ft (17.0 cu m) bulk cargo
Engines
maximum thrust

Pratt & Whitney 4098
98,000 lb (44,452 kg)

Rolls-Royce Trent 892
90,000 lb (40,823 kg)
Maximum Fuel Capacity 45,220 U.S. gal (171,160 L)
Maximum Takeoff Weight 660,000 lb (299,370 kg)
Maximum Range 5,960 nautical miles (11,030 km)
Typical city pairs: Tokyo-Singapore, Honolulu-Seoul, South Korea; San Francisco-Tokyo
Typical Cruise Speed
at 35,000 feet		 0.84 Mach
Basic Dimensions
Wing Span
Overall Length
Tail Height
Interior Cabin Width
Exterior Width
199 ft 11 in (60.9 m)
242 ft 4 in (73.9 m)
60 ft 8 in (18.5 m)
19 ft 3 in (5.86 m)
20 ft 4 in (6.19 m)
